In today's fiercely competitive financial market, quantitative trading, as a trading strategy based on data analysis and algorithmic models, is becoming an increasingly favored choice for investors and traders. In the field of quantitative trading, the value of data is becoming increasingly prominent. Therefore, an efficient and reliable quantitative data exploration tool has become an indispensable key to achieving successful transactions.
In this era where data-driven decision-making is increasingly valued, the FMZ Quant data exploration module has emerged. As one of the essential tools in the field of quantitative trading, it is not only an ordinary data analysis software, but also a revolutionary innovation that provides investors with unique data analysis and mining functions, helping them seize opportunities and reduce risks in complex and ever-changing financial markets.
FMZ Quant, as a professional quantitative trading platform, is supported by numerous quantitative trading tools. At present, the "Data Exploration" module of the FMZ Quant Trading Platform has integrated the services of the datadata platform, giving users more advantages in multidimensional data analysis, mining visual data, exploring trading strategies, and other aspects. FMZ's self-developed datadata platform is a quantitative financial data platform. Using SQL queries to analyze massive amounts of data and configuring them through visual interfaces, generating various charts suitable for data analysis and sharing them with the team, allowing us to easily grasp market trends and seize investment opportunities!
FMZ Quant Data Exploration Module

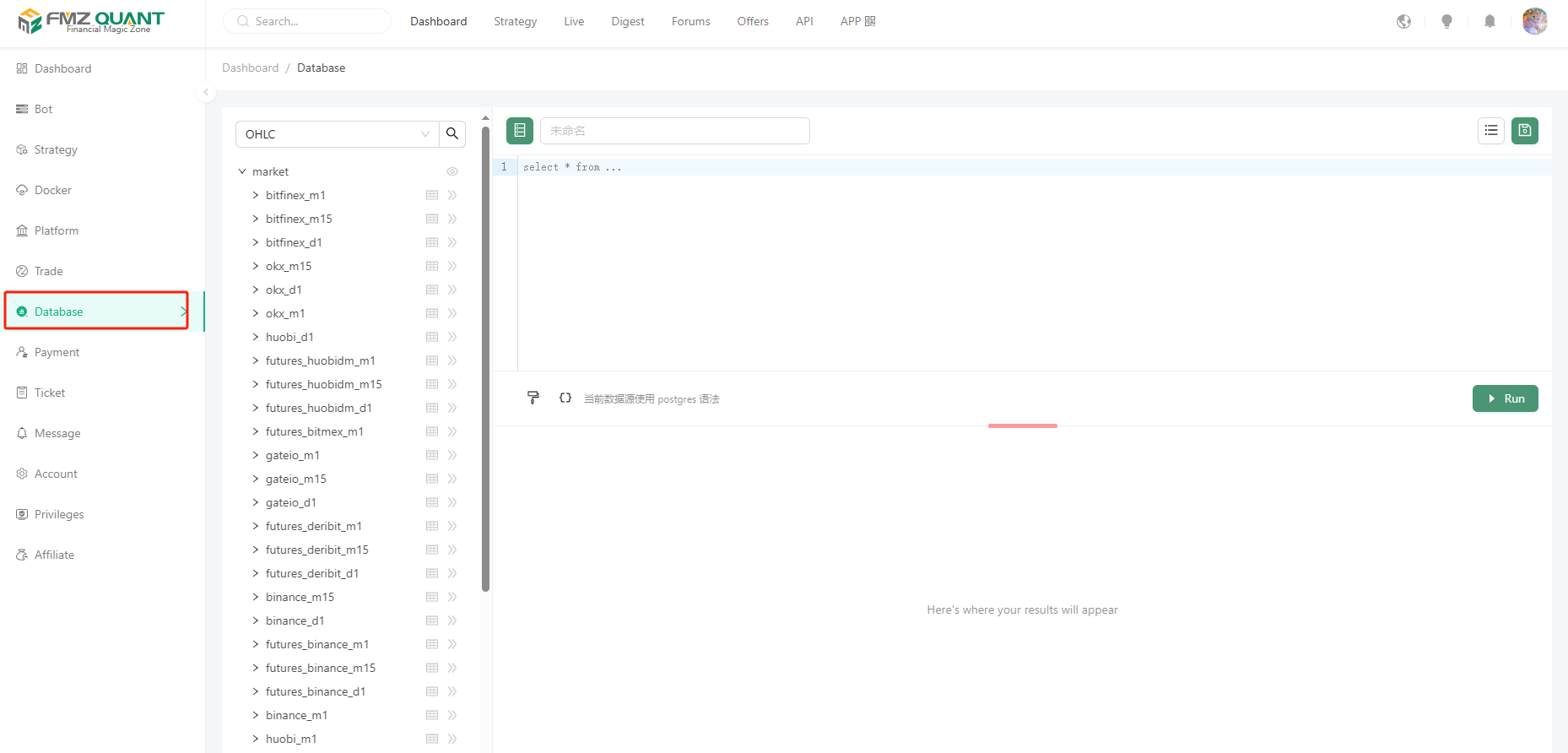

First of all, let's familiarize with the FMZ Quant Data Exploration module, which is used just like on datadata. For each FMZ platform user, we don't need to register for the datadata platform again, and we can use all the features of the datadata platform directly.
https://stocksharp.com/file/149179
Data areas
The list on the left side shows the data content that has been supported on-line, currently supporting K-line data (OHLC) and Tick data of each exchange (platform). More types and dimensions of data will be supported in the future.
These data are updated continuously in real time, allowing us to always grasp the market dynamics.

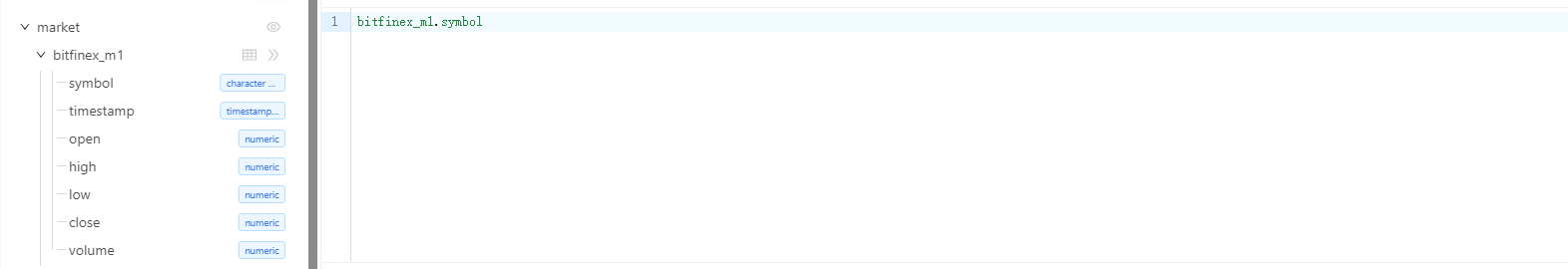

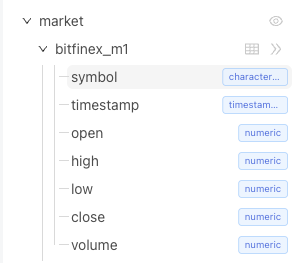

For example, if we select OHLC and then select market->bitfinex_m1, we can see the field names in this table object after clicking Expand.
https://stocksharp.com/file/149180
Click on the table chart to preview some of the data.
The platform also supports uploading your own data by clicking the "Upload Data" button at the bottom of the list.
Uploading CSV files from your device to the server.
The file size should not exceed 10 MB, with a maximum of 10,000 rows and 128 columns.
SQL statement edit area
https://stocksharp.com/file/149181
Here is the edit box for writing a specific query statement, we will show two interesting examples later, let's understand the other features first.
https://stocksharp.com/file/149182

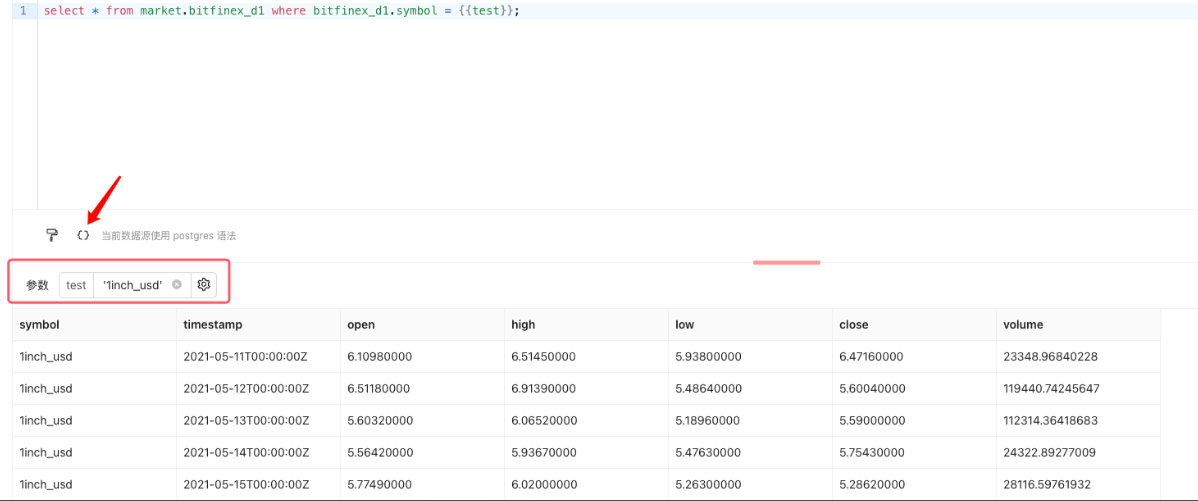

There are two control buttons here, the first one can be used to format the SQL statement easily. The second button is used to insert variables used in the SQL statement, similar to adding a parameter to the SQL query that can be modified in real time (without having to hard-code some of the query conditions into the SQL statement). For example:
https://stocksharp.com/file/149183

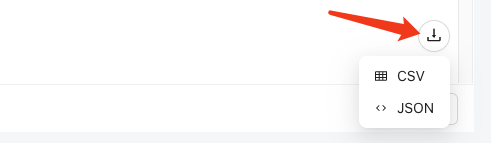

Input '1inch_usd' into the parameter test and click the "Execute" button on the right side, then you can query all the data of the variety 1inch_usd. The queried data can also be exported and downloaded locally:
https://stocksharp.com/file/149184
It supports JSON, CSV format.
If we want to save the SQL query, we can click the "Save" button in the upper right corner to record the SQL query in the resource list of the current FMZ account's "Data Exploration" (the resource list button is on the left side of the save button) for future use.
At present, the interface we see is simple and the functions are simple, but in practical use, we will experience the powerful use of this tool. Next, let's take a look at two more complex examples.
Volatility ranking
```
SELECT
UPPER(REPLACE(symbol, '_usdt.swap', '')) as symbol,
((MAX(high) - MIN(low)) / AVG((high + low) / 2)) AS volatility_percentage
FROM
market.futures_binance_d1
WHERE
timestamp >= CURRENT_DATE - INTERVAL '{{days}} day' and symbol like '%.swap'
GROUP BY
symbol
ORDER BY
volatility_percentage {{rank}}
LIMIT
{{limit}};
```
This SQL code is used to get the volatility percentage of the trading pair that meets the criteria from the table "market.futures_binance_d1" and sort and limit the quantity output by volatility percentage.
The explanation of this SQL is given below:
```
1. Two expressions were used for calculation, one was to replace the '_usdt.swap' in the 'symbol' column with an empty string and convert the result to uppercase, and the other was to calculate (MAX(high) - MIN(low)) / AVG((high+low) / 2).
The first expression uses the REPLACE function to replace strings that meet the criteria, and then uses the UPPER function to convert the result to uppercase.
The second expression calculates the difference between the highest and lowest prices divided by the average of the highest and lowest prices to calculate the percentage of volatility.
2. FROM clause:
The specified data table to be queried is "market.futures.binance_d1".
3. WHERE clause:
Two filter conditions are used: timestamp >= CURRENT_DATE - INTERVAL '{{days}} day' and symbol like '%.swap'.
The first condition filters out data within the last {{days}} days.
The second condition filters out trading pairs where the "symbol" column ends in '.swap'.
4. GROUP BY clause:
Group by the "symbol" column.
5. ORDER BY clause:
Sort by volatility percentage, either ascending (ASC) or descending (DESC), depending on the {{rank}} parameter.
6. LIMIT clause:
Limit the number of output results, which can be set according to the {{limit}} parameter.
```
https://stocksharp.com/file/149185

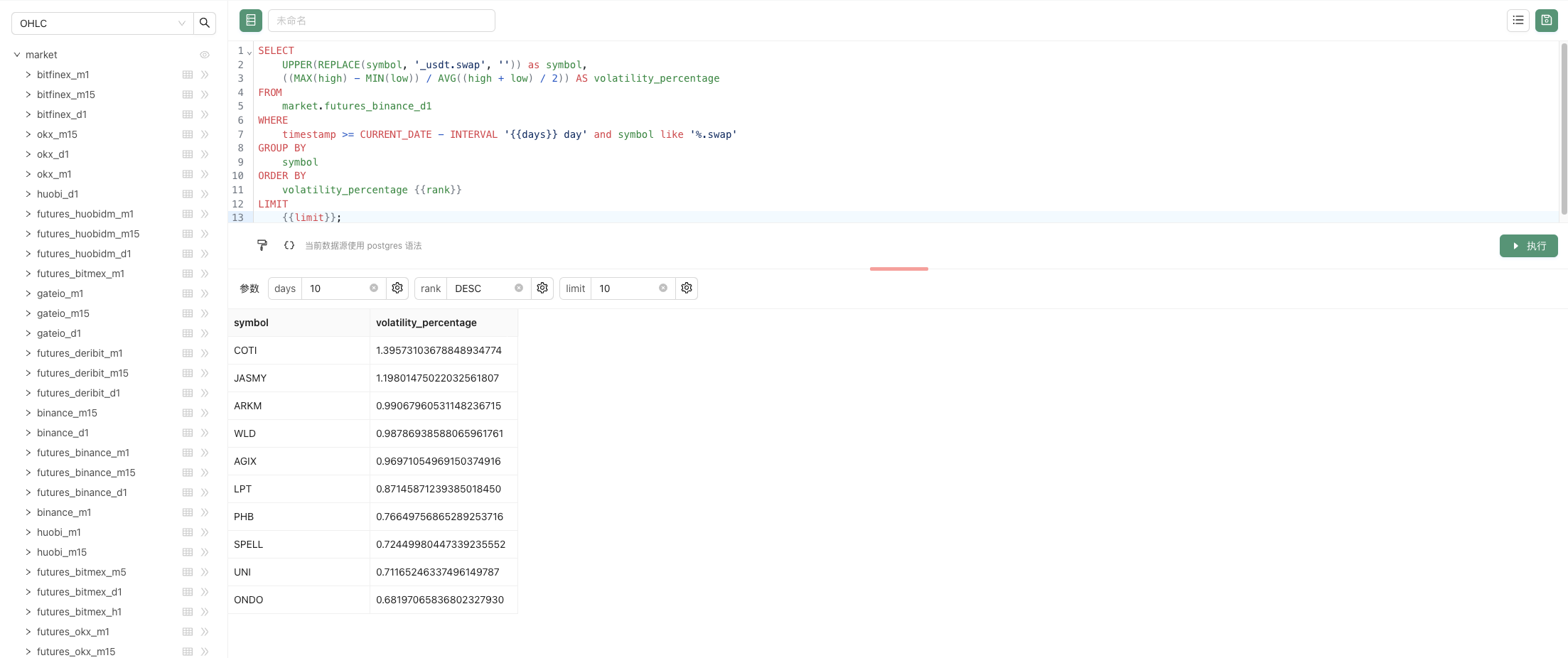

When we enter the parameters:
days: 10 , rank: DESC , limit: 10, click the "Execute" button to execute the SQL statement and query the result.

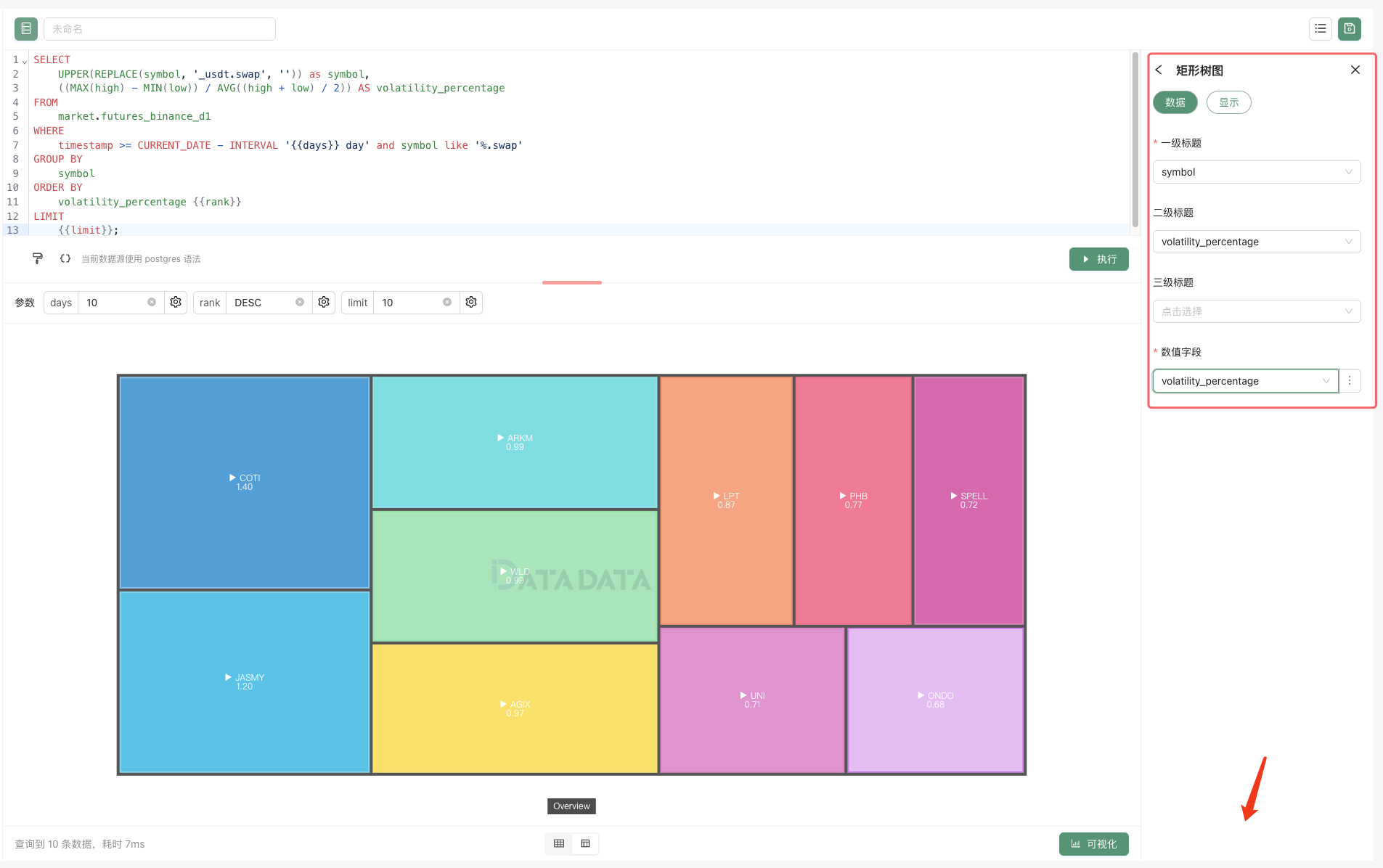

In addition to displaying data in the form of tables, it can also be displayed in a variety of visualization ways. After setting up some relevant settings for visualization, the data will be displayed in a richer and more vivid way.
https://stocksharp.com/file/149186

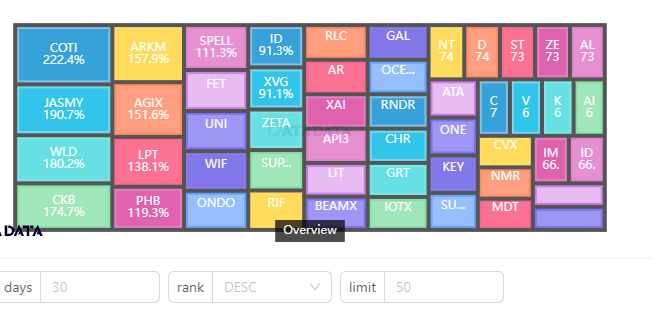

The created query can also generate URLs for easy sharing, and we can also modify the parameters to update the query (try modifying the parameters to update the query here in the article). Follwing is a chart of the real-time data generated:
volatility ranking
https://stocksharp.com/file/149187
In-depth Replay
Next we're going to study an example of studying a market micro-scenario, which is a wonderful tool for studying the details of high-frequency trading.
```
select * from market.binance where symbol = lower('{{symbol}}') order by timestamp desc limit 2000
```

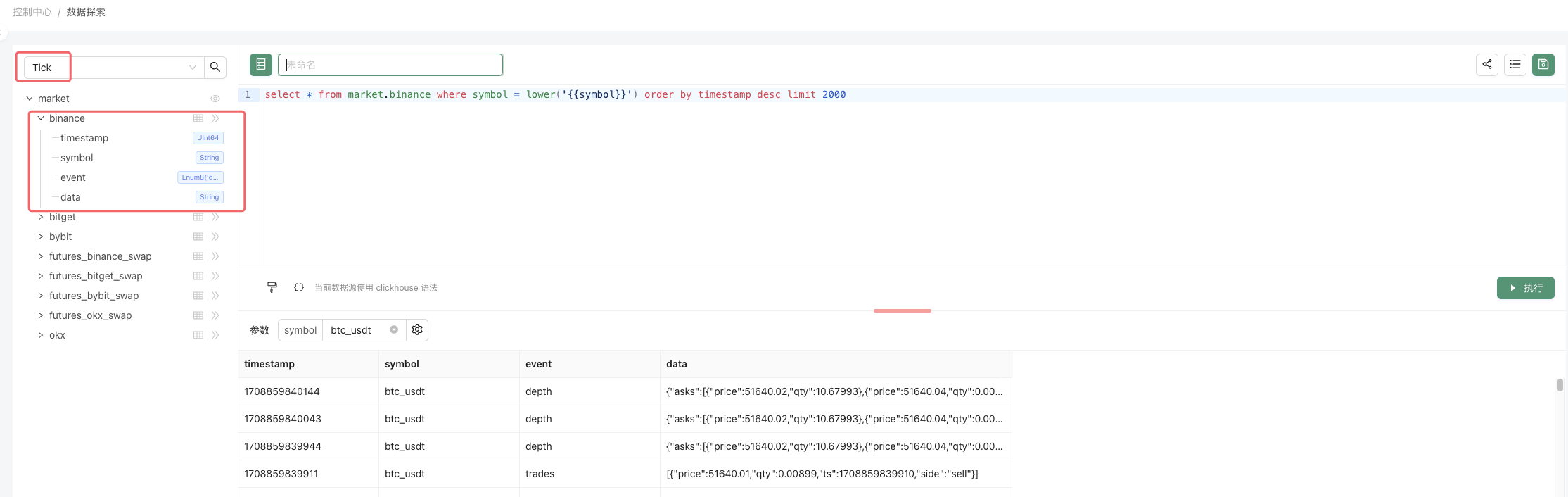

Use the above SQL statement to query the tick level tick data for a particular species.
https://stocksharp.com/file/149188
The SQL query for this example is very simple, just querying the Tick data for a certain variety (specified by the parameter symbol) on the Binance exchange.

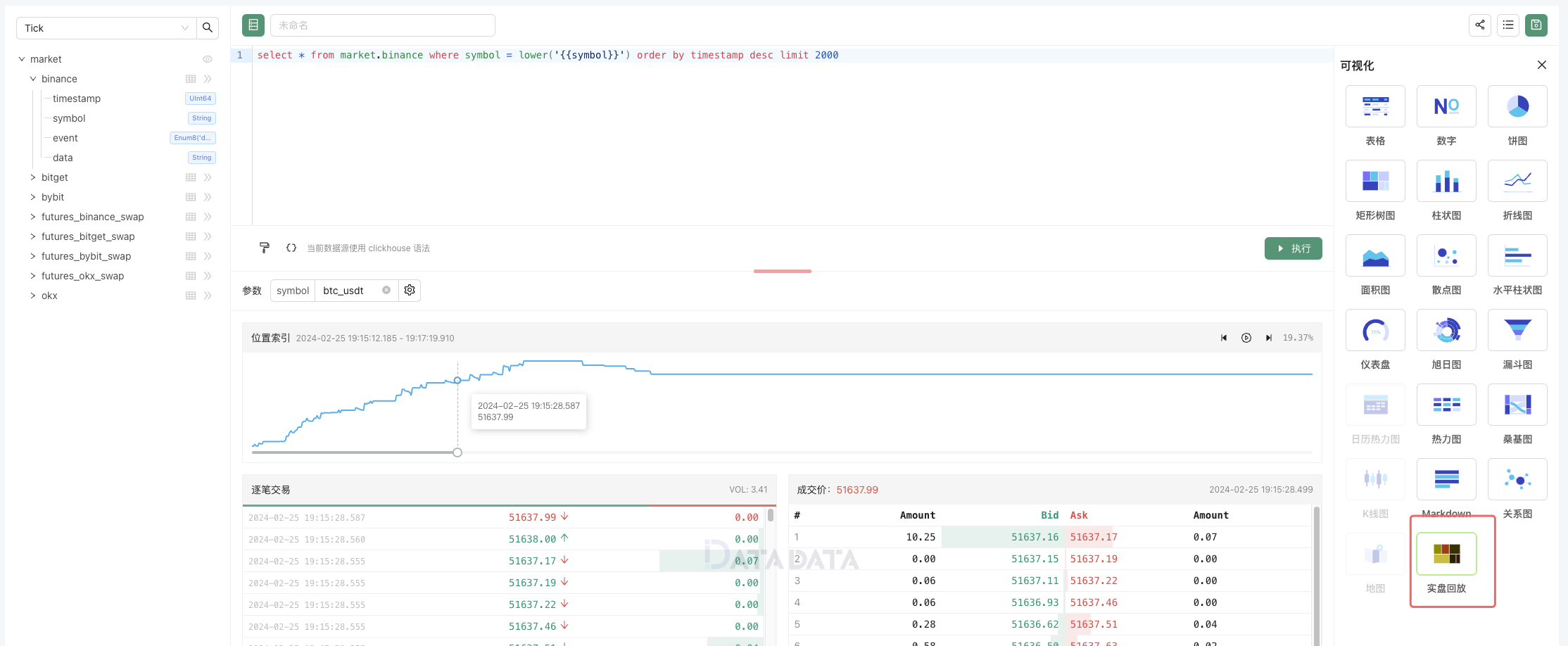

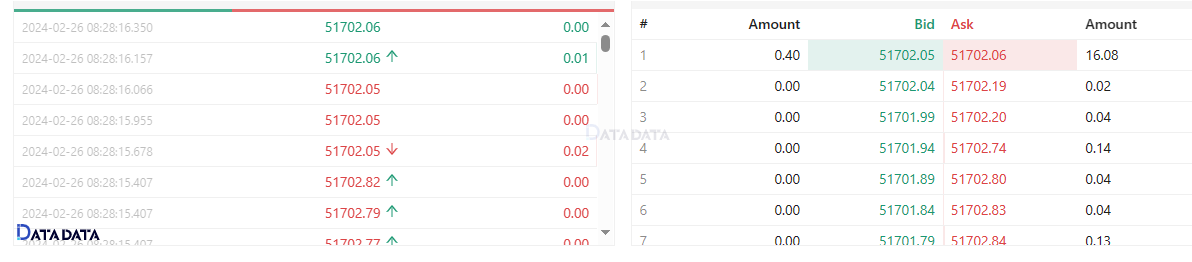

The point is to show the data in the form of a live trading replay, on a time series, with multiple charts:
https://stocksharp.com/file/149189
Is it convenient to study the details in the market?

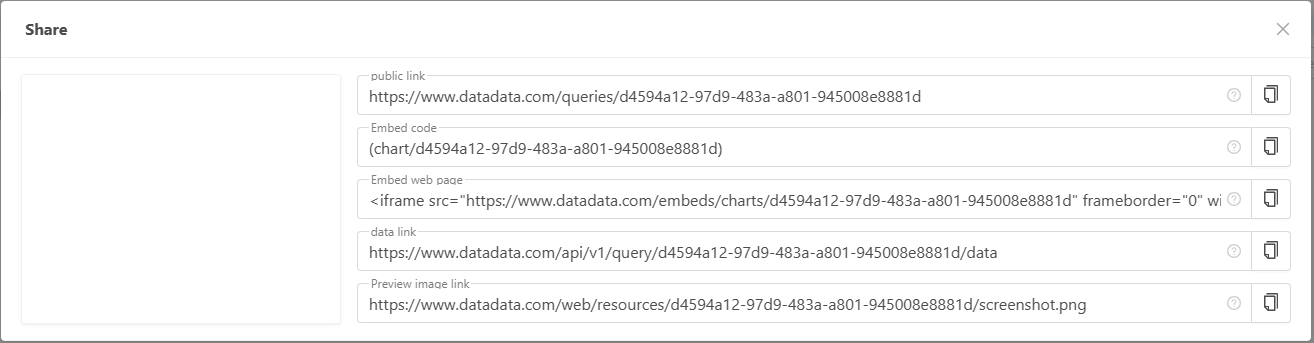

Next, let's take a look at how to share our research. We can click on the share icon in the upper right corner.
https://stocksharp.com/file/149190
These shared codes, links, can be embedded in FMZ platform community posts, articles. They can be embedded in web pages and can be republished in other communities, forums, etc. It can also be shared directly to anyone.
https://stocksharp.com/file/149191
What are you waiting for with this powerful quantitative trading tool? Try to mine the data and analyze it.
